PSR-580 Ambulift
With Self-Made Chassis
PSR-580 Ambulift<br>With Self-Made Chassis
  • Main Technical Parameter

    ·Outside dimensions of the cabinet (length × width × height): 4380㎜ × 2280㎜ × 2258㎜
    ·Cabinet height: 2100mm
    ·Vehicle quality: 7200㎏
    ·Car body rated load: 1500㎏ (15 people)
    ·Front platform rated load: 1000kg
    ·Rated load of rear lifting tail plate: 400kg
    ·Dimensions (L × W × H): 6920㎜ × 2400㎜ × 3800㎜
    ·Platform expansion before and after: 600㎜
    ·Platform left and right movement: 500㎜

Download infosheet

PSR-580 Ambulift<br>With Self-Made Chassis
ZL-CBC80
Belt Loader
ZL-CBC80<br>Belt Loader
This belt loader is a special equipment for airport ground handling designed and manufactured by EWORK, which provides safe, convenient and practical functions for airport baggage transfer. The equipment adopts a self-made chassis with advanced technical performance. The equipment has a full-view cab, large field of view, low center of gravity, good stability, safe and convenient operation, reasonable structure design, advanced technology, beautiful appearance, easy maintenance, and serves various aircraft models

Applicable

A300、A310、A318、A319、A320、A330、A340、B707、B727、B737、B747、B757、B767、B777、DC8、1L—18、1L—62、MD11、MD80, etc.

Main Feature

·The equipment is integrally welded with a frame structure, with uniform force, high strength, low center of gravity, strong stability and wind resistance.
·The equipment is equipped with an autonomous deviation correction device, and the con veyor belt can realize automatic deviation correction when the goods are placed unevenly.
·The equipment has a small turning radius, wide wheel base, uniform and reasonable load distribution, and high driving stability.
·The conveying speed of the conveyor belt is adjustable.
·The emergency operation and safety protection devices are complete and perfect.

Download infosheet

ZL-CBC80<br>Belt Loader
BL-800E Belt
Loader
BL-800E Belt<br>Loader
tructure component: BL-800E belt loader (electric type) is a new energy ground freight guarantee vehicle. It is mainly used for loading and unloading luggage, parcels and mails. The car is composed of self-made chassis, left-mounted driver's platform (optionally sealed cab), transmission frame device, hydraulic operating system, and three-electric system (battery, motor, electronic control).

Main technical parameter

Applicable: B737 series, B747, B757, B767, B777, A320 series, A300, A330, A340, etc.

Download infosheet

BL-800E Belt<br>Loader
Product Characteristics
The full-roller design of the conveyor belt frame ,durable and maintenance-free Transmission speed can be adjusted, safe and reliable All exposed control devices are rainproof

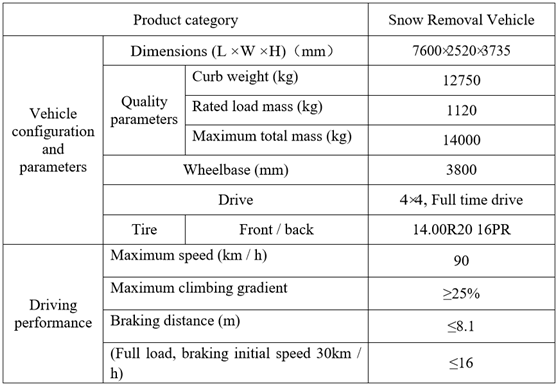

SW668 Multifunctional
Snow Removal Vehicle
SW668 Multifunctional<br>Snow Removal Vehicle
SW668 Multifunctional Snow Removal Vehicle has snow shovel in front and roller brush in back. The operation speed is fast and the efficiency is high; at the same time, the front snow shovel, the rear roller brush, the snow thrower, the spreader and other working devices can be installed to achieve fast replacement, multi-purpose machine, and greatly save the cost of equipment purchase Ideal snow removal vehicle in sanitation, highway, farm and other fields.

Download infosheet

SW668 Multifunctional<br>Snow Removal Vehicle
Product Characteristics
Multi-use for one vehicle and Quick change Fast operation speed and high efficiency High cost performance and first-class after-sales service
SW549 Compact
Three-In-One Snowplow
SW549 Compact<br>Three-In-One Snowplow
SW549 compact three-in-one snowplow is a new generation product. The car uses front snow shovel, central roller brush, and rear blower for snow removal. The snow shovel, roller brush and fan have the function of synchronous setting, simple operation and independent control. It is widely used for snow removal in areas such as runways, taxiways, and connecting roads. It can also be used for snow removal in areas such as apron.

Download infosheet

SW549 Compact<br>Three-In-One Snowplow
Product Characteristics
Reliable performance and high cost performance Strong power and high efficiency Easy to operate and understand
SW360 Deicing
Fluid Filling Truck
SW360 Deicing<br>Fluid Filling Truck
SW360 deicing fluid filling truck is a "mobile" filling station for the storage, transfer and filling of airport aircraft deicing fluid. The vehicle uses two sets of stainless steel water pumps to achieve liquid addition and liquid discharge, respectively driven by two hydraulic motors, one is responsible for the liquid out of the tank, and the other set of water pump is responsible for adding liquid to the tank. It improves the operation volume of deicing fluid, and meets the airport's efficient and fast response mode.

Download infosheet

SW360 Deicing<br>Fluid Filling Truck
Product Characteristics
Large storage capacity, efficient and fast Stainless steel tank, anti-rust and durable Safe and reliable
SW90 Multifunctional Work Vehicle
SW90 Multifunctional Work Vehicle
SW90 multi-function vehicle is a small multi-function work platform independently developed to fill the domestic gap. It can quickly install dozens of work tools to achieve multi-function operations, suitable for municipal sanitation, airports, and other industries for washing, snow throwing, road cleaning, fallen leaf crushing collection, mowing, guardrail cleaning, etc. The SW90XS washing and cleaning vehicle developed on the SW90 multi-functional platform solves the industrial problem of deep cleaning of back streets and sidewalks and pedestrian walkways; the installation of a snow blower solves the problems of low utilization rate and expensive of emergency equipment such as snow throwing.

Download infosheet

SW90 Multifunctional Work Vehicle
SW14
High-Speed Snowplow
SW14<br>High-Speed Snowplow
SW14 High-Speed Snowplow is a new generation of high-speed snowplow. The car adopts the heavy truck second class car chassis modification, with Cummins auxiliary engine generating strong power. Also, It is equipped with a high-speed large roller brush and a high-speed, large-flow cold-blowing system. The operation method of front-sweep and back-blowing is widely applied to the deicing and snowing operations of highways, urban arterial roads, airport runways, and aprons. Its performance is better than similar domestic products

Download infosheet

SW14<br>High-Speed Snowplow
PBT-15 Aircraft Pushback Tractor (Internal Combustion Type)
PBT-15 Aircraft Pushback Tractor (Internal Combustion Type)

·Gross Vehicle Weight:16400kg
·Maximum Towing Weight:150000kg
·Maximum Speed:26km/h
·Maximum Drawbar Pull:120kN

Download infosheet

PBT-15 Aircraft Pushback Tractor (Internal Combustion Type)
Product Characteristics
High-end configuration ·Strong Bearing Capacity ·Safe and Efficient
